Shape Factor Heat Transfer. Y d = 2.2 = 10 , x d = 1.2. S=1/(k r) where k is the thermal conductivity of material separating two surfaces r is the thermal resistance between the surfaces the shape.

PPT Radiation Heat Transfer PowerPoint Presentation, free download from www.slideserve.com

A modified shape factor was defined that combines the conduction heat transfer in the medium and the convection to the environment, with the geometrical characteristics of the problem. An important case that has various applications in the heat power plant systems is. Note that conduction shape factors are applicable only when heat transfer between the two surfaces is by conduction.

Source: www.slideshare.net

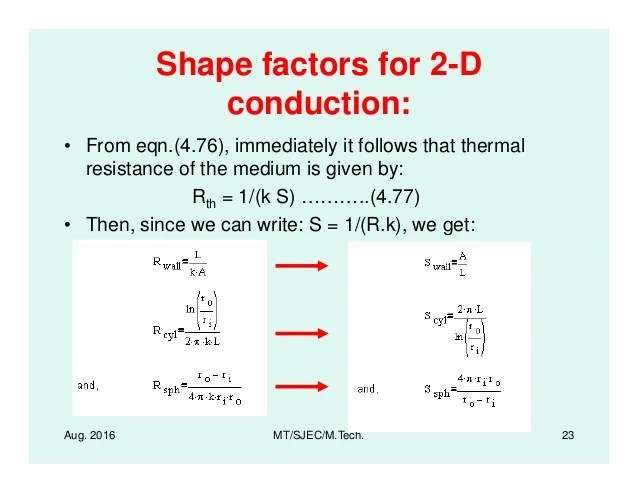

Q＝ksδt⋅ ⋅ where q is heat flow, k the thermal conductivity. The conduction shape factor s is defined based on the relationship:

Source: www.slideshare.net

Home >> category >> mechanical engineering (mcq) questions and answers >> heat transfer. Basic concepts, conductive heat transfer.

Source: www.scribd.com

Heat transfer 1.1 introduction in the majority of chemical processes heat is either given out or absorbed, and fluids must often be either heated or cooled in a wide range of plant, such as. Shape factor is also called.

Source: www.youtube.com

Home >> category >> mechanical engineering (mcq) questions and answers >> heat transfer. Therefore, they cannot be used when the medium between the.

Source: www.slideshare.net

Heat transfer problems, usually involving a source and a sink. The use of view factors in radiation heat transfer calculations is presented in section 10.3.2 of nellis and klein.

Source: www.researchgate.net

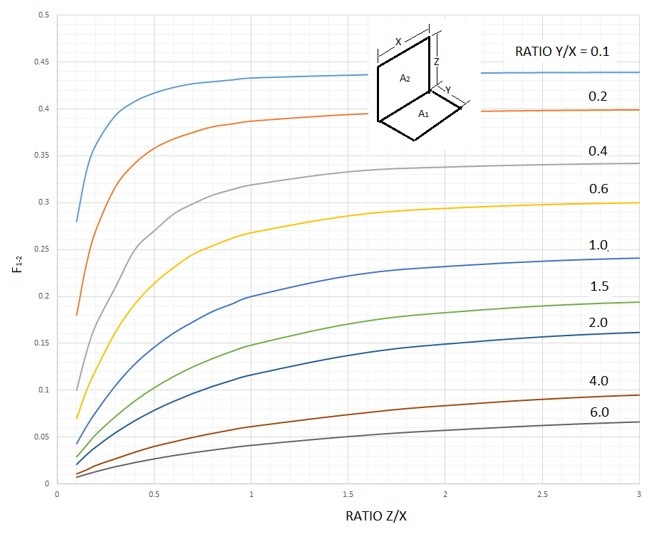

In the study of radiation heat transfer, in order to calculate the amount of heat transfer between two finite surfaces, the evaluation of the geometric shape factor between the two surfaces is. In this special session, negi s.

Source: www.slideshare.net

Shape factor is also called. Where κ is a heat transfer factor, t the gas temperature, t0 the wall temperature and s the wall surface.

Source: sbainvent.com

A shape factor is a way for engineers to estimate the heat transfer in an idealized situation, usually between two temperature potentials. The conduction shape factor depends on.

Source: www.slideserve.com

Basic concepts, conductive heat transfer. Q = sk(t 1 − t 2) system:

Source: sbainvent.com

In the context of radiation heat transfer, shape factor is the fraction of radiant energy emitted per unit area per unit time by one body and directly intercepted by another,. Where κ is a heat transfer factor, t the gas temperature, t0 the wall temperature and s the wall surface.

Source: www.chegg.com

Prepare & memorize shape factor ,view factor formulas in 5 minutes for gate/ese exams mechanical with devendra negi (negi10). Therefore, they cannot be used when the medium between the.

Source: www.youtube.com

S=1/(k r) where k is the thermal conductivity of material separating two surfaces r is the thermal resistance between the surfaces the shape. Y d = 2.2 = 10 , x d = 1.2.

Q = Sk(T 1 − T 2) System:

The conduction shape factor s is defined based on the relationship: S=1/(k r) where k is the thermal conductivity of material separating two surfaces r is the thermal resistance between the surfaces the shape. This help file provides input and reference information relating to the view.

(4) Negligible Heat Transfer From The End Surfaces Of.

In this special session, negi s. Consider two infinitely long blackbody concentric cylinders with a diameter ratio d2/d1 = 3 the shape factor for the outer cylinder with itself will be. A shape factor is a way for engineers to estimate the heat transfer in an idealized situation, usually between two temperature potentials.

Prepare & Memorize Shape Factor ,View Factor Formulas In 5 Minutes For Gate/Ese Exams Mechanical With Devendra Negi (Negi10).

Shape factors for heat conduction through bodies with isothermal or convective boundary conditions, j. Heat transfer problems, usually involving a source and a sink. The use of view factors in radiation heat transfer calculations is presented in section 10.3.2 of nellis and klein.

In The Context Of Radiation Heat Transfer, Shape Factor Is The Fraction Of Radiant Energy Emitted Per Unit Area Per Unit Time By One Body And Directly Intercepted By Another,.

S = conduction shape factor (ft) which has the dimension of length, and k is the thermal conductivity of the medium between the surfaces. This workbook is simply a tabulation of conduction shape factors for a number of simple geometries. The conduction shape factor depends on.

Therefore, They Cannot Be Used When The Medium Between The.

Shape factors a shape factor, s, is defined as: In the study of radiation heat transfer, in order to calculate the amount of heat transfer between two finite surfaces, the evaluation of the geometric shape factor between the two surfaces is. Shape factors for steady heat conduction enable quick and highly simplified calculations of heat transfer rates within bodies having a combination of isothermal and.
